Core Flat Pack Container Product Features

Speed & Deployment Efficiency

You can assemble a flat pack container quickly, even if you have never built one before. The design uses pre-marked, factory-made parts. You only need basic tools like a screwdriver and socket set. Most people finish assembly in less than two hours. You do not need heavy machines or cranes. This makes the process simple and safe. Tip: You can prepare your site and receive your flat pack container at the same time. This saves you weeks compared to traditional building. Here is how the assembly process stands out: Factory prefabrication ensures every part fits perfectly.

You connect the main frame, walls, and roof with strong bolts.

You connect the main frame, walls, and roof with strong bolts.

You connect the main frame, walls, and roof with strong bolts.

If you have questions during assembly, support teams can guide you step by step. If you lose a part or need extra panels, you can order replacements easily.
Durability

Flat pack containers use galvanized steel frames and insulated panels. This gives you a strong, long-lasting structure. The steel has a zinc coating that protects against rust and harsh weather. The panels use fireproof and waterproof materials. You get a safe and comfortable space in any climate.

You can trust your flat pack container to last over 30 years with proper care. The design meets ISO and international safety standards. You can use your container in places with strong winds, heavy rain, or even earthquakes. The doors and windows resist impact and keep your space secure.

If you ever notice leaks or damage, you can contact after-sales service. Teams can help you repair seals, replace panels, or upgrade insulation.
Portability

You can move a flat pack container almost anywhere. The design lets you fold or disassemble the unit into a compact package. This reduces shipping volume by up to 70%. You can fit two units in one 40-foot shipping container, saving you money and time.

You can deploy your flat pack container in remote areas, cities, or disaster zones. The structure can handle hundreds of moves and setups. If you need to relocate, you can pack up and move your unit with ease.

A flat pack container gives you a flexible, durable, and portable solution for any project.

Custom Flat Pack Container Specifications & Installation

External dimensions (L × W × H)：5800 × 2438 × 2896 mm

Parameter/Indicator	Value
Design life	20 years
Wind resistance	0.50 kN/m³
Sound insulation	Sound reduction ≥ 25 dB
Fire resistance	Class A
Waterproofing	Internal drainage pipe system
Seismic resistance	Grade 8
Floor live load	2.0 kN/m²
Roof live load	1.0 kN/m²

Component	Description	Quantity
Top main beam	2.5 mm galvanized formed beam, 180 mm wide	4 pcs
Top secondary beam	Galvanized C80 × 1.3 mm + 3 × 3 mm square tube	4 pcs
Bottom main beam	2.5 mm galvanized formed beam, 180 mm wide	4 pcs
Bottom secondary beam	50 × 100 mm square tube, 1.2 mm thick	9 pcs
Column	2.5 mm galvanized column, 180 × 180 mm	4 pcs
Hex bolts	M16 internal-hexagon bolts	48 pcs
Corner fittings	Galvanized corner piece, 180 × 180 mm, 4 mm thick	8 pcs
Surface finish	Electrostatic spray paint (DuPont powder)	1 set
Sandwich roof panel	1.2 mm marine-grade container roof plate, fully welded	1 set
Roof insulation	50 mm glass‐fibre wool insulation	1 set
Z-profile flashing	1.5 mm galvanized Z-shaped profile, painted	4 pcs
Downpipe	50 mm PVC downpipe	4 pcs
Flashing trough	Integrated base flashing at wall panel bottom	1 set
Ceiling tile	0.35 mm thick, 831-profile color-steel ceiling tile	1 set
Wall panel	950-profile, 50 mm rock-wool core (70 kg/m³), 0.3 mm steel skin	1 set
Door	Special container door, W 920 × H 2035 mm, 0.5 mm panel, fire-rated lock	1 set
Window	UPVC sliding window, W 925 × H 1100 mm, insulated + anti-burglary	2 pcs
Fireproof floor	18 mm cement-fiberboard, 1165 × 2830 mm	5 pcs
Floor finish	1.6 mm PVC vinyl sheet flooring, heat-welded seams	1 set
Interior & trims	0.5 mm color-steel corner trim; PVC skirting (brown)	1 set

Custom Flat Pack Container Installation: 5 Critical Steps

Step 1: Define Project Specifications

Evaluate your container’s intended function and spatial requirements. Measure deployment area dimensions and operational needs. Compact units (e.g., 12m²) suit storage or offices; complex facilities like clinics often require interconnected modules. Assess terrain accessibility – flat pack designs excel in confined spaces or remote locations where traditional construction is impractical.

Step 2: Conduct Site & Regulatory Assessment

Verify ground stability and levelness. Research local codes governing temporary structures and secure permits proactively. Confirm delivery vehicle access – no cranes needed. Ensure 360° clearance for panel movement to assembly points. Address drainage/soil conditions before delivery.

Step 3: Source Certified Suppliers

Select manufacturers offering:

CE/ISO9001-certified production

Galvanized steel frames (minimum 2.3mm thickness)

Thermal-break insulation systems

Detailed assembly guides or professional supervision

During ordering, request customizations: security enhancements, window configurations, or specialized door placements.

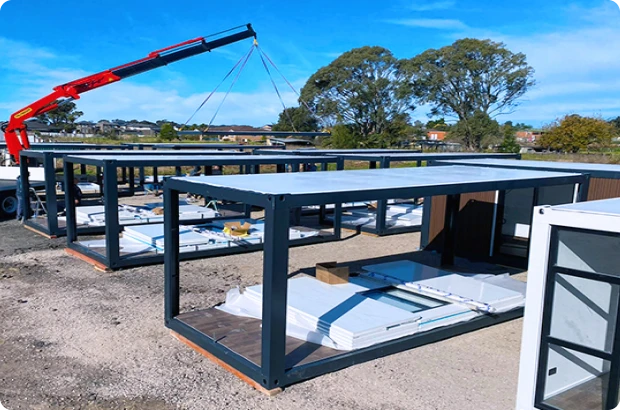

Step 4: Systematic Assembly Protocol

Tools & Team: 2-3 workers equipped with socket sets, screwdrivers, and ladders.

Procedure:

Unpack components following numbered sequences

Connect foundation beams and corner fittings

Install wall panels and insulation layers

Secure roof beams and weatherproofing

Mount doors/windows

Timeframe: Under 3 hours per standard unit with experienced crew.

Step 5: Long-Term Preservation

Annual: Check bolt tension; clean PVC floors with pH-neutral solutions

Biannual: Inspect sealant integrity

*Every 3-5 years:* Reapply anti-corrosion coatings

Relocation: Disassemble in reverse sequence; store panels on elevated, covered platforms to prevent moisture damage.

Customization Options of Flat Pack Container

When you pick a flat pack container house, you get many choices. You can make your space for living, working, or special jobs. Every part, from the layout to the structure, can change for you. This makes the flat pack container house a smart pick for lots of needs.

Layout Options

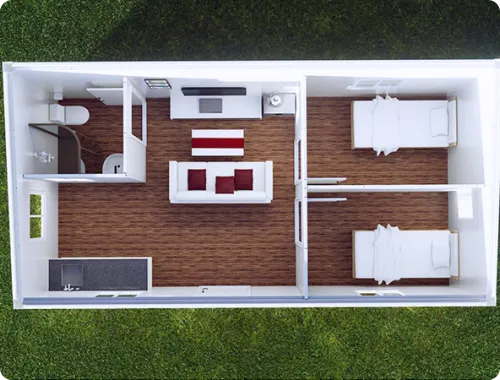

You can choose from many layouts for your daily life or work. Some people want a small home. Others need a big office or a camp with many rooms. You can join containers in different ways to make the space you want.

Layout Option	Description	Customer Preference Supported
Single-container layout	Bedrooms at ends, kitchen/living in the middle	Maximizes privacy and airflow
Side-by-side two-container layout	Two containers joined for a wider, open-plan space	More defined rooms, spacious feel
L-shaped layout	Containers arranged in an L shape for separate living and sleeping zones	Maximizes privacy and utility
U-shaped layout	Three containers around a courtyard for private outdoor space	Enhances privacy and indoor-outdoor flow

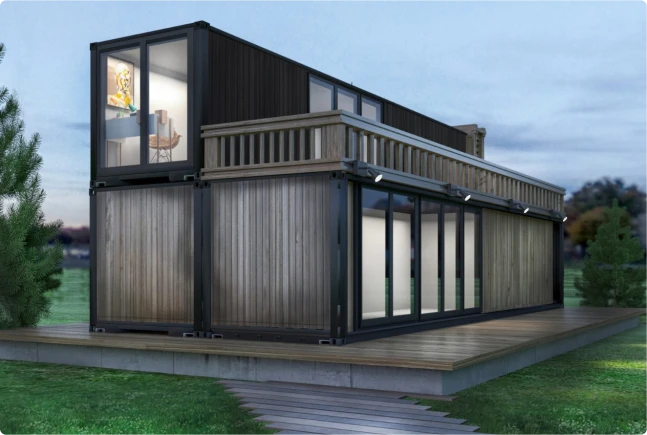

Stacked container layout	Containers stacked vertically, bedrooms upstairs, shared spaces below	Increases space without expanding footprint
Offset containers	Second story offset for shaded outdoor areas	Provides outdoor shade, ideal for warm climates
Split functions across containers	Separate containers for private and shared spaces	Improves organization and sound insulation

Tip: You can start with a small flat pack container house. Later, you can add more units if you need more space.

Structural Options

High-Tensile Steel Frames with Anti-Corrosion Coating

Your house uses high-tensile Q355 galvanized steel frames. Customize frame thickness from 2.3mm to 3.0mm based on your project needs. This steel doesn’t rust and handles extreme weather. The anti-corrosion coating ensures strength for over 20 years – ideal for hot, cold, dry, or wet environments.

Complete Customization Control

Thickness Options:

Frames: 1.8mm / 2.3mm / 3.0mm

Wall panels: 50mm / 75mm / 100mm

Flooring: 2.0mm PVC / 3.0mm diamond plate

Windows:

Size adjustments (standard/maxi/panoramic) + material upgrades (single/double glazed UPVC or aluminum)

Container Dimensions:

Tailor length/width/height beyond standard sizes Multi-Story Stacking Strength

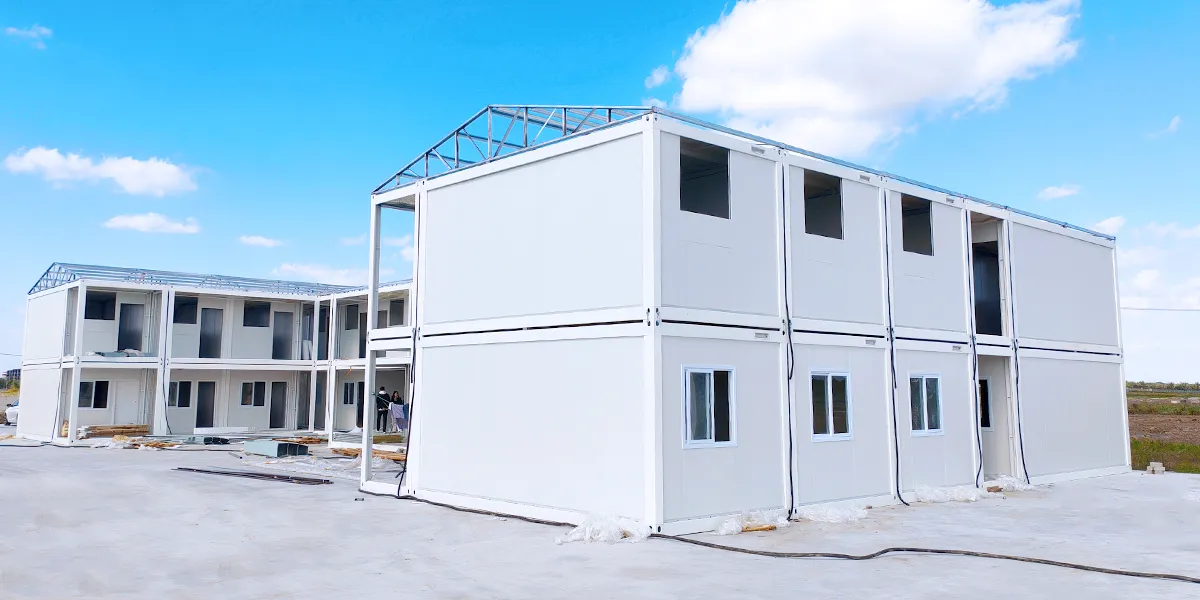

Build up to 3 stories with reinforced engineering:

3-Story Configuration:

Ground floor: 3.0mm frames (heavy-duty load bearing)

Upper floors: 2.5mm+ frames or uniform 3.0mm throughout

All stacked units include interlocking corner castings and vertical bolt reinforcement

Modular bolt-together system for rapid assembly

You do not need special tools or big machines. The modular bolt-together system lets you connect frames, walls, and roofs fast. Most people finish building in less than a day. If you want to move or change your house, you can take it apart and build it again somewhere else.

Note: If you lose bolts or panels, after-sales teams can send new ones fast. You can keep your project going with little wait.

Critical Components

Interlocking corner posts with internal bolts

Interlocking corner posts make your house stronger. Internal bolts keep the frame tight and steady. This design helps your house stand up to strong winds and earthquakes. You can stack containers up to three floors high.

Pre-installed utility channels (electrical/plumbing)

You get wires and pipes already inside the walls and floors. This saves you time and money when you set up. You can add kitchens, bathrooms, or laundry rooms easily.

Expandable end walls for multi-unit connections

Expandable end walls let you join containers side by side or end to end. You can make bigger rooms, hallways, or even a courtyard. This helps you build schools, offices, or camps that can grow. Callout: If you want better insulation, solar panels, or different windows, you can ask for these before shipping. Support teams help you plan and change every detail.

Advanced Flat Pack Container Engineering

Flat pack container engineering gives you strong and safe spaces. These containers work well in rain, snow, or heat. ZN-House uses smart roofs and weatherproofing to help your house last a long time.

Roof Systems

Fully Welded Roof:

Seamless Watertight Protection for Extreme Climates

The roof is made from thick galvanized steel. It has 70mm PU foam inside for insulation. This keeps water out and stands up to strong winds.

Skin Roof: Lightweight + Ventilated Design

A skin roof uses a steel frame and aluminum-zinc panels. It has 100mm fiberglass insulation with foil. This makes the roof light and lets air move. It works well in warm or rainy places. The roof can handle salty air, rain, and sun. You get a comfy space in any weather.
Drainage Innovation

Internal Gutter Systems with PVC Drainage Pipes

There are gutters and PVC pipes inside the roof and walls. These move water away from your house. Your space stays dry, even in storms.

Corner Post Drainage Ports

Corner posts have drainage ports. You can connect them to tanks or city drains. This helps control water during floods or heavy rain. In Brazil, a client used this to keep their home dry.

Pipes inside the walls help drain water

Flooding troughs at the bottom of wall panels

Color steel top with waterproof seal

Glass fiber insulation with PE resin film

Tip: If you see leaks or blocked drains, ask for help. You can get new pipes, seals, or advice on upgrades.

Flat pack container engineering lets you build in hard places. You get strong roofs, smart seals, and good drainage. Your house stays safe, dry, and comfy for many years.

Flat Pack Container Project Case Studies

Selecting adequate units prevents queues and ensures compliance. ZN House recommends these proven methods:

Case 1: Worker Camp

Case 2: Flood-Relief Medical Center

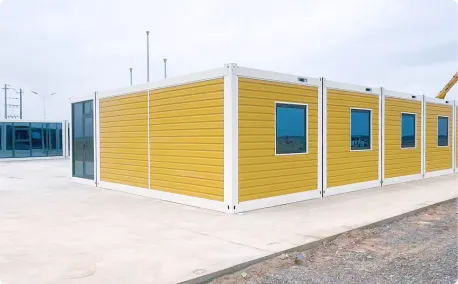

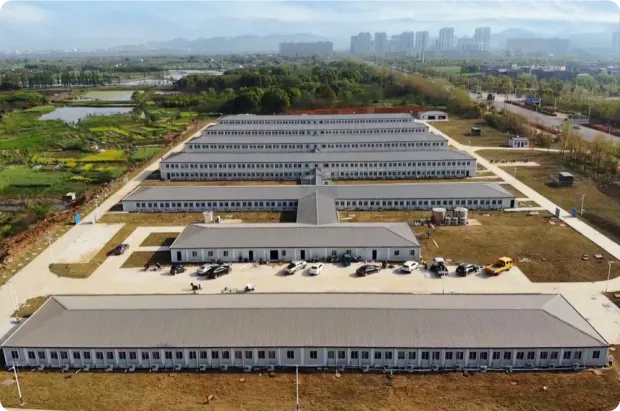

Case 1: Worker Camp

A flat pack container can change a worker camp fast. Many companies pick this for quick and safe housing. In one project, a camp for 200 workers was needed in a faraway place. The flat pack containers came packed flat to save space and money. You and your team put each unit together in just a few hours with simple tools.

Feature/Aspect	Description/Specification	Benefit/Outcome
Material	Steel structure with sandwich panels	Strong, stands up to weather, lasts a long time
Design	Flat pack container design	Easy to move, quick to build
Certifications	CE, CSA, EPR	Meets world safety and quality rules
Application	Worker camps, offices, temporary housing	Can be used for many needs
Construction Speed	Factory-based, flat pack	Builds faster, less waiting
Sustainability	Reduced waste, energy efficient	Good for the environment
Customization	Insulation, windows, doors	Can match your weather and comfort needs
Quality Control	Factory production, strict standards	Always good quality
Model Variants	Base, Advanced, Pro	Pro model: stronger, better insulation, faster to build
Project Support	Design help, cost-effective, after-sales	Easy project, simple to fix or change

You get a clean and safe camp that follows all the rules. If you have leaks or broken panels, support sends new parts fast. You can also ask for better insulation or change the layout.

Case 2: Flood-Relief Medical Center

Flat pack containers help a lot in emergencies. In a flood-relief project, a medical center had to be built quickly and stay strong in bad weather. The containers came in small packages, so you could bring many at once. You and your team set up the center in less than two days.
You picked extra insulation and waterproof layers to keep everyone safe. The modular design let you join units for exam rooms, waiting areas, and storage. The built-in drainage system stopped water from pooling when it rained a lot.

Tip: If you need more space or want to move, you can take apart and rebuild the units easily. After-sales teams help with support and spare parts.

Flat pack container projects like these show how you can fix real problems fast. You get strong, flexible, and green solutions for urgent needs. Flat pack container houses help you build safe places anywhere, anytime.

About ZN House: Our Flat Pack Container Factory Advantage

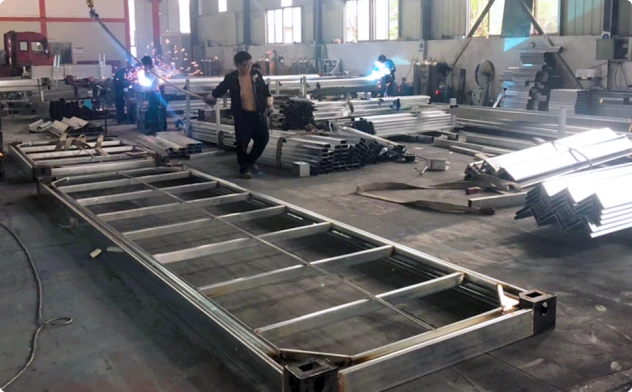

Manufacturing Powerhouse

You want a flat pack container that is strong, flexible, and easy to use. ZN-House builds each unit in a modern factory with advanced technology. You benefit from:

Steel frames that stand up to tough weather. You get a safe space in hot, cold, or wet places.

Insulated wall, roof, and floor panels that lock together. This design keeps your space warm or cool and saves you time during setup.

Many ways to customize your flat pack container. You can pick window sizes, door types, and even the color.

Flat packing that saves shipping space. You pay less for transport and get more units per shipment.
Compliance & Certifications

You need to trust that your flat pack container meets global standards. ZN-House follows ISO 9001 rules for quality and safety. Each container uses ISO-certified steel and passes tests for fire resistance, weather, and earthquakes. The company uses Corten steel frames that resist rust and last for years.

Real Experience: In a recent project, a client in Brazil received flat pack containers that fit perfectly on trucks. The team finished building a camp in just two days, even with heavy rain. The strong steel frames and tight panels kept everyone dry and safe.

ZN-House uses eco-friendly materials and energy-saving methods. The factory cuts waste by using modular designs and smart planning. You help the planet by choosing a flat pack container that is built to last and easy to move.

Tip: If you have questions about standards or need special documents for your project, ZN-House provides all the paperwork you need.

You also get strong after-sales support. ZN-House gives you clear instructions, training videos, and fast replies to your questions. If you lose a part or need help, the team sends replacements quickly. You always have someone to help you with your flat pack container.

You can count on ZN-House for a flat pack container that meets your needs for quality, safety, and support.

Ready To Start Your Project?

Provide personalized gift customization services, whether it is personal or corporate needs, we can tailor for you. Feel free to contact us for a free consultation

GET A QUOTE

FAQs

What Is A Flat Pack Container House And How Does It Work?

A flat pack container house arrives as a compact kit. You assemble it using simple tools. You get steel frames and insulated panels. For example, in Brazil, a client built a home in one day. You can use it for living, working, or storage.
How Long Does It Take To Assemble A Flat Pack Container House?

You can set up a flat pack container house in less than two hours with two people. Most users finish in one day, even with no building experience. You only need basic tools. This fast assembly saves you time and labor costs.
Can I Customize My Flat Pack Container House For Different Uses?

Yes, you can change the layout, add rooms, or stack units. In Suriname, a client chose a glass wall and sloped roof for a modern look. You can request special insulation, solar panels, or extra doors before shipping your flat pack container house.
What Should I Do If I Lose A Part Or Need Repairs?

If you lose a panel or bolt, contact after-sales support. You get replacement parts quickly. For leaks or damage, support teams guide you step by step. Many users in South America fixed their flat pack container house with help from support.
How Long Does A Flat Pack Container House Last?

A flat pack container house lasts 20 to 30 years with care. Galvanized steel frames resist rust. Insulated panels keep your space safe in any climate. Regular checks and quick repairs help you use your flat pack container house for many years.
Need more help? Contact support for advice or spare parts. Your flat pack container house stays strong and useful with the right care.
