Two Floor Container House Suppliers

Two Floor Container House

Project Description

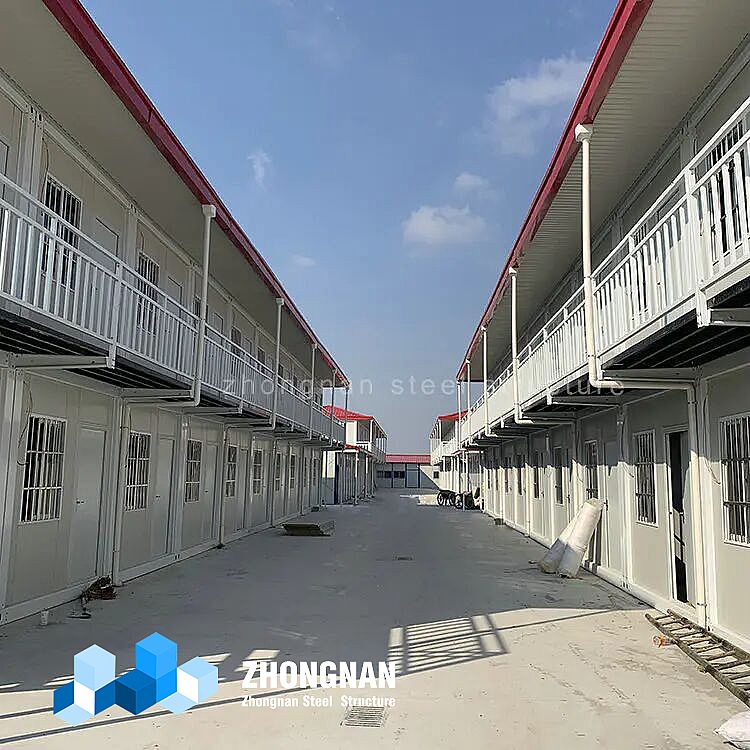

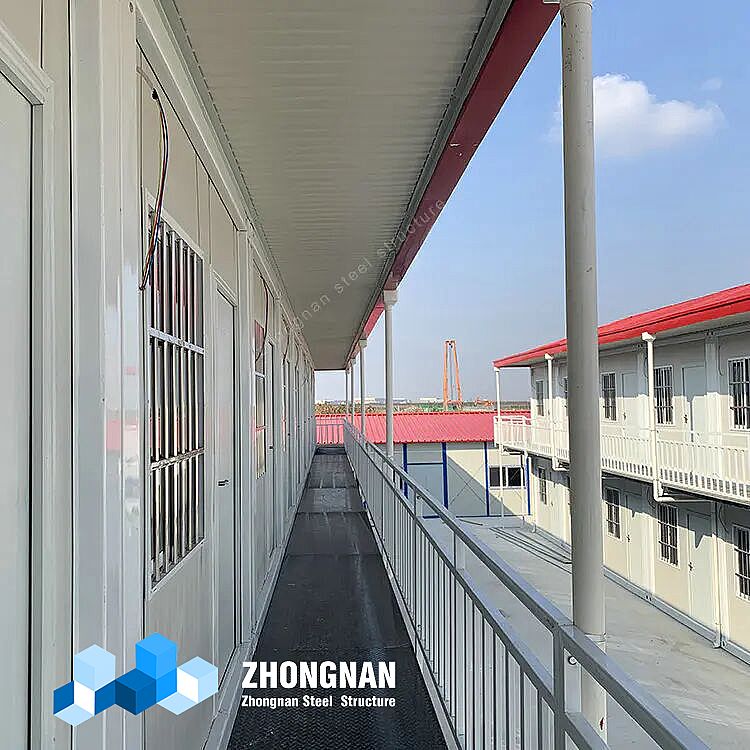

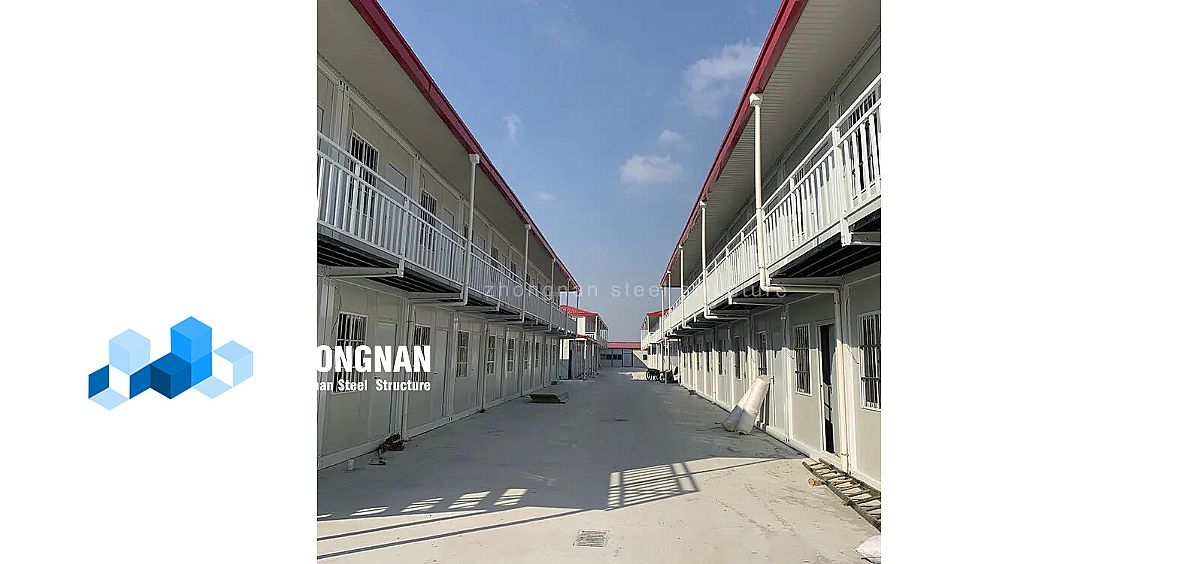

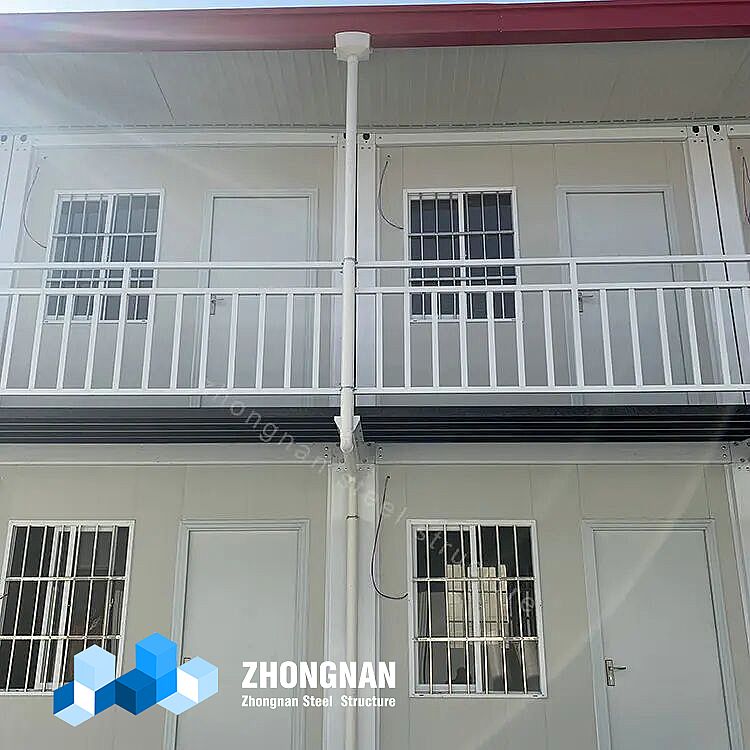

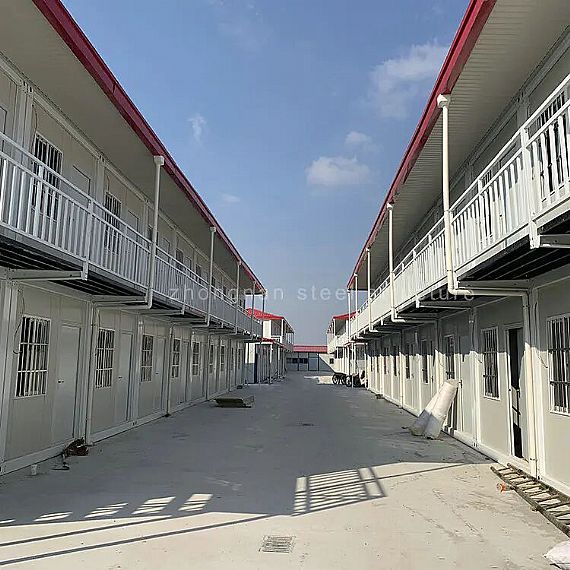

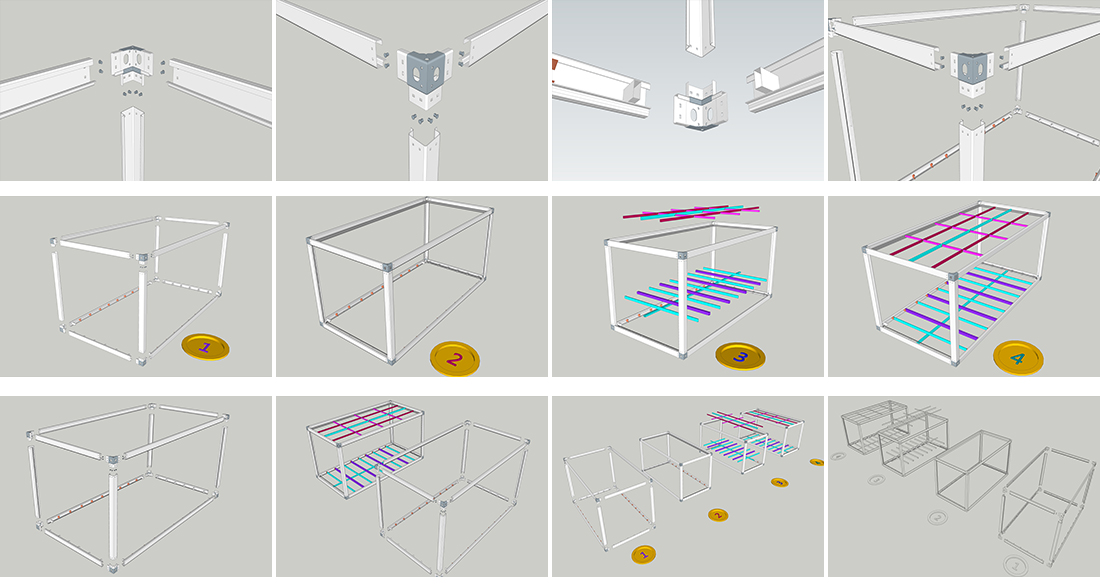

This project is famous Chinese architectural projects which has built in Shanghai. They stacked the boxes together to use as workers' dormitory.Portable detachable container house is a new generation of prefab house. It is a whole unit itself, which can be used as a single portable house, or combined laterally or placed with layers. Generally we make 20ft sizes, combination is also available,size can be adjusted base on the standard. Wall panel thickness: 50mm/75mm/100mm,according to specific climate conditions. Electricity and water plumbing system can provided. Assemble Container house can be connected by bolts, with easy installation and fast transportation. Life span is 10-15 years. Water-proof system on the roof makes good sealing effect. The main frame structure has 4 pcs columns, 8 pcs beams and 8 pcs corner post . All frame profiles are made of galvanized steel rolled , the frame thickness varies from 2mm to 3mm. It has good resistance to bending and compression.

1C   2E   3B   4B

Assemble container house
Bottom Frame structure 2.5mm thick profiled steel
Floor MGO board,waterproof, fireproof (Option Fiber cement)
Floor finishes 1.8mm PVC flooring (extra cost)
Roof Frame structure 2.3mm thick profiled steel
Outside cover 0.426mm steel sheet
Insulation  glass wool
Ceiling 0.25mm steel sheet bottom tile
Corner post 4.5 cold rolled steel profile, galvanization, welded (160mm*160mm)
Wall panel Sandwich panel with 50mm rock wool
Window Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass)
Door Steel door with dimension 925mm*2035mm

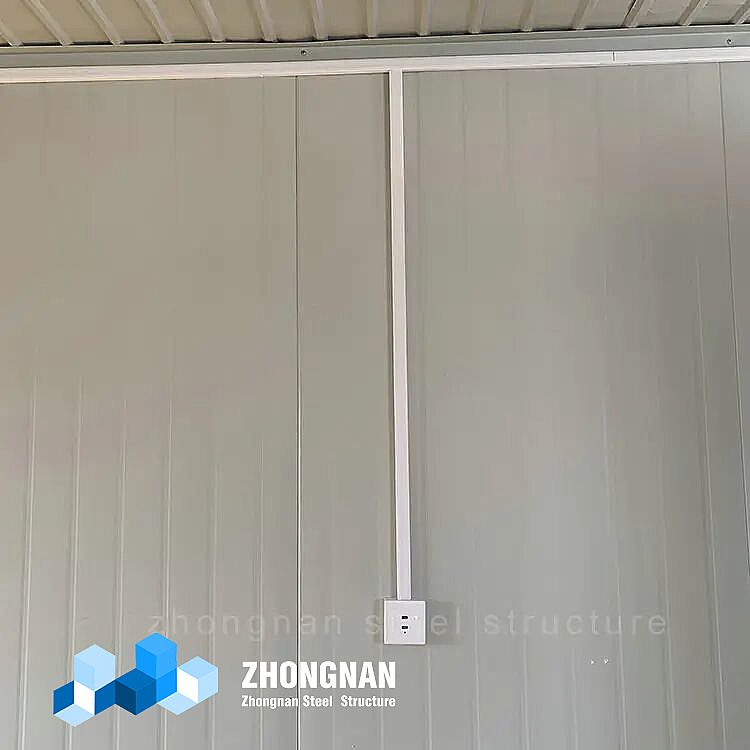

Electricity Light, Switch, Socket, distribution box, breaker and wire
Painting Automatic galvanizing and baking paint spray molding
Exterior size 5950(L)*3000(W)*2800(H)
