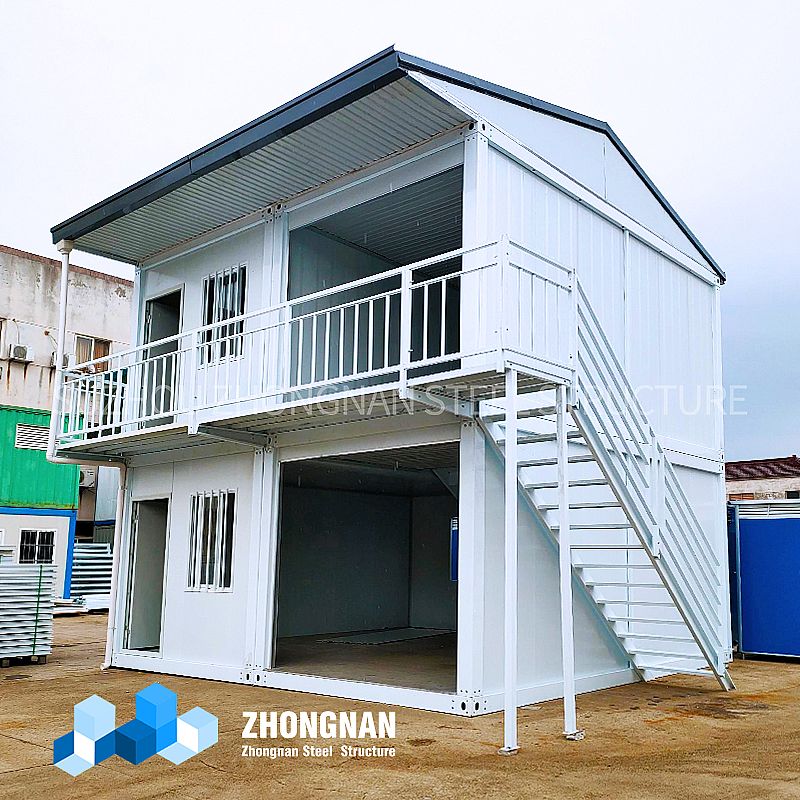

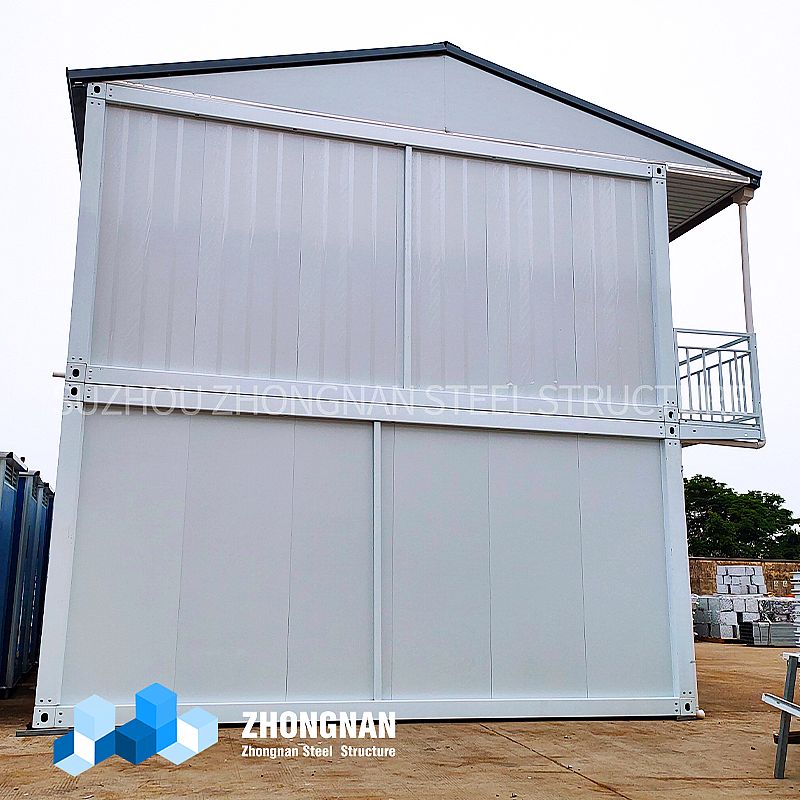

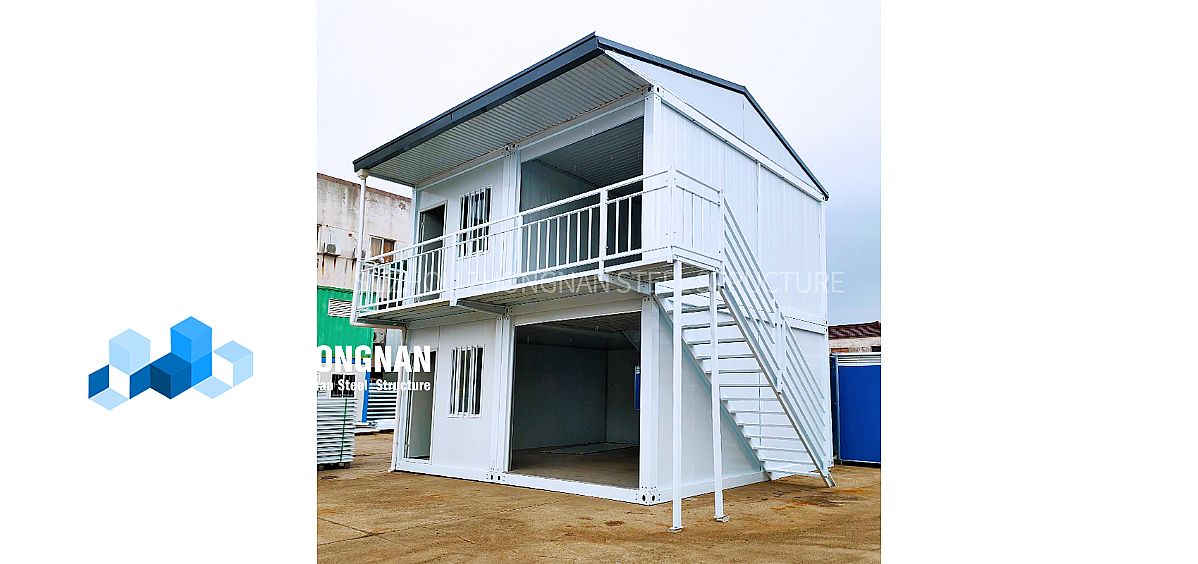

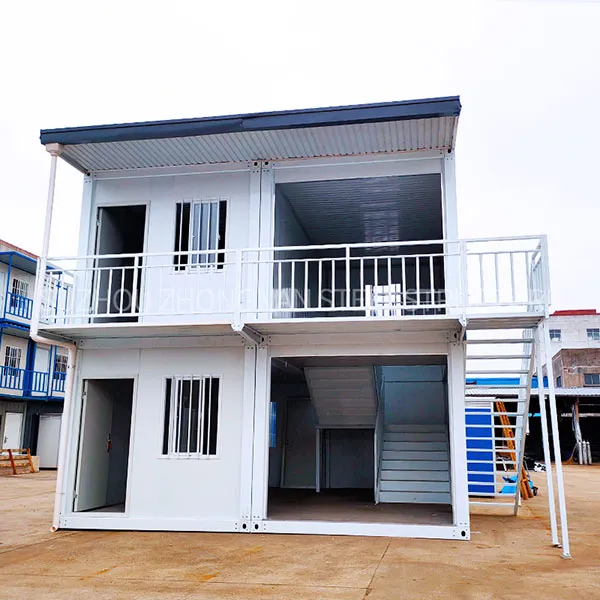

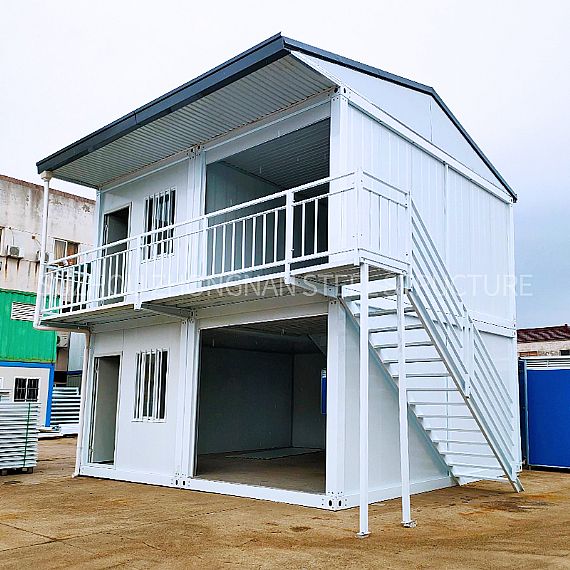

Prefab 2 storey slope roof container home

Product parameters

Bottom	Frame structure	2.5mm thick profiled steel
	Floor	MGO board, waterproof, fireproof (Option Fiber cement)
	Floor finishes	1.8mm PVC flooring (extra cost)
Roof	Frame structure	2.3mm thick profiled steel
	Outside cover	0.426mm steel sheet
	Insulation	glass wool
	Ceiling	0.25mm steel sheet bottom tile
Corner post	4.5 cold rolled steel profile, galvanization, welded (160mm*160mm)
Wall panel	Sandwich panel with 50mm rock wool
Window	Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass)
Door	Steel door with dimension 925mm*2035mm
Electricity	Light, Switch, Socket, distribution box, breaker, and wire
Painting	Automatic galvanizing and baking paint spray molding
Exterior size	5950 (L)*3000 (W)*2800 (H)

Product Features:

This small prefabricated container villa is especially popular in Thailand, Singapore, the Philippines, France, and other countries. It Can be used as a residence, homestay, studio, restaurant, shop, etc.

1. The steel frame is fully galvanized steel, which has a long service life and is not easy to rust.

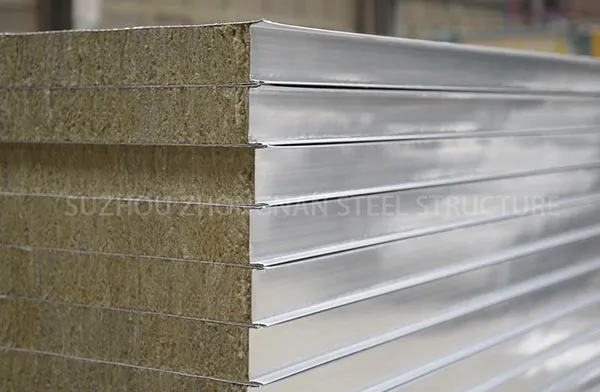

2. The wall panels are fireproof rock wool sandwich panels, which have good sound insulation, heat insulation, and flame retardant properties.




3. The steel structure can be disassembled and assembled at will, which is convenient for transportation, and all materials can be recycled, durable, and environmentally friendly.

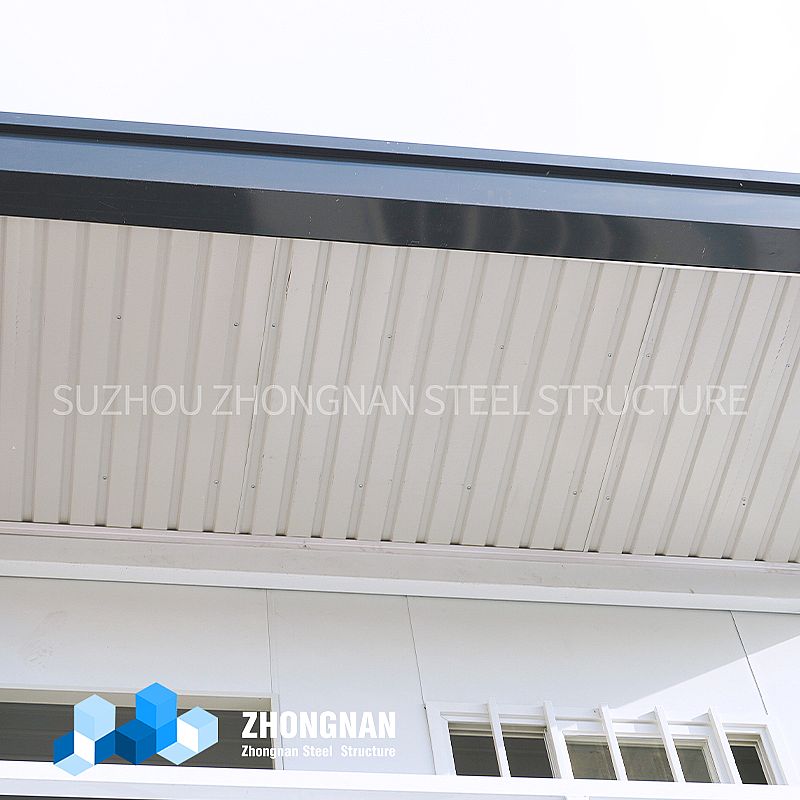

4. The roof adopts a sloping roof, so there is no water accumulation on the roof even in rainy weather, which reduces the risk of roof leakage and has a longer service life.

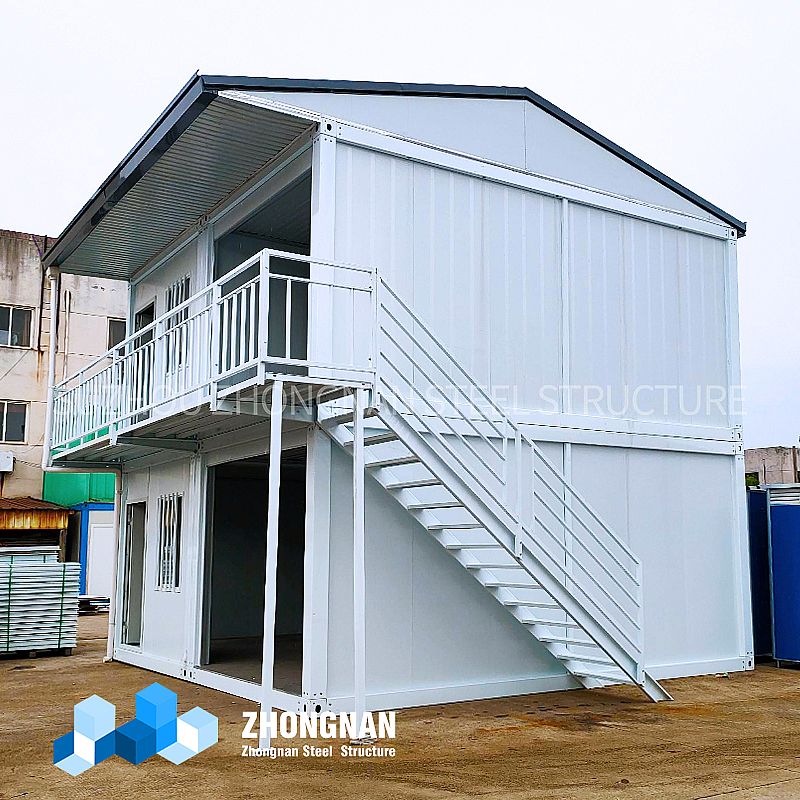

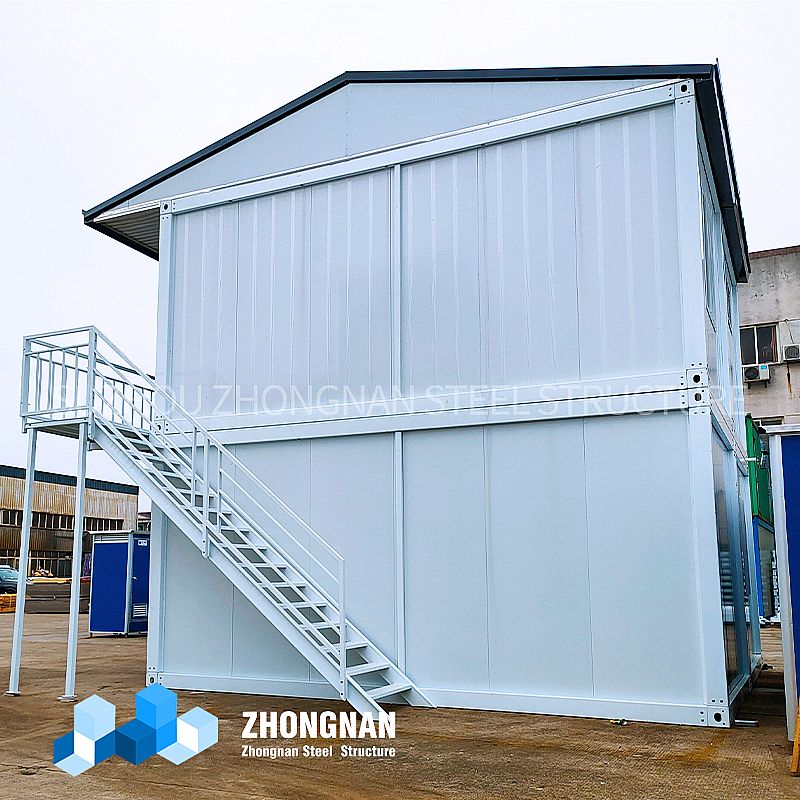

5. Stairs and corridors are made of galvanized steel, which is durable and rust-proof. The stairs are available in both built-in and outside options.
6. We can customize more sizes according to your needs.

Model	External Dimensions			Internal Dimensions			Weight
	Length	Width	Height	Length	Width	Height
A	3000mm	1200mm	2800mm	2800mm	1000mm	2520mm	550KG
B	3000mm	2000mm	2800mm	2800mm	1800mm	2520mm	700KG
C	3000mm	3000mm	2800mm	2800mm	2800mm	2520mm	850KG
D	4000mm	3000mm	2800mm	4800mm	2800mm	2520mm	1000KG
E	5950mm	1800mm	2800mm	5750mm	1600mm	2520mm	1150KG
F (20FT)	5950mm	3000mm	2800mm	5750mm	2800mm	2520mm	1300KG
G	9000mm	3000mm	2800mm	8800mm	2800mm	2520mm	1450KG

7. Low cost and easy to build.
