Customized Prefabricated Living Container House

Project Description

The custom prefabricated living container fully utilizes the advantages of modular construction: low cost, convenient transportation, quick installation, and high flexibility.

The first floor is designed as a fully enclosed open space, with floor-to-ceiling glass doors to ensure the view and indoor lighting. The first floor can be designed according to the customer's needs as a living room, indoor café, or other leisure area, with good privacy for people to rest and relax indoors. The water and electricity supply is complete, basic furniture is prefabricated in the factory, and facilities such as counters and seats can be provided.

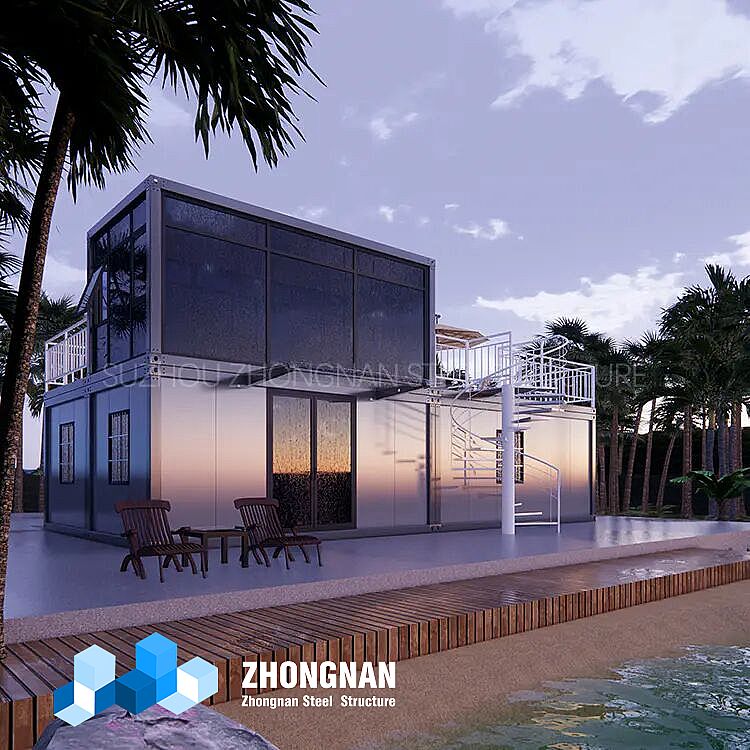

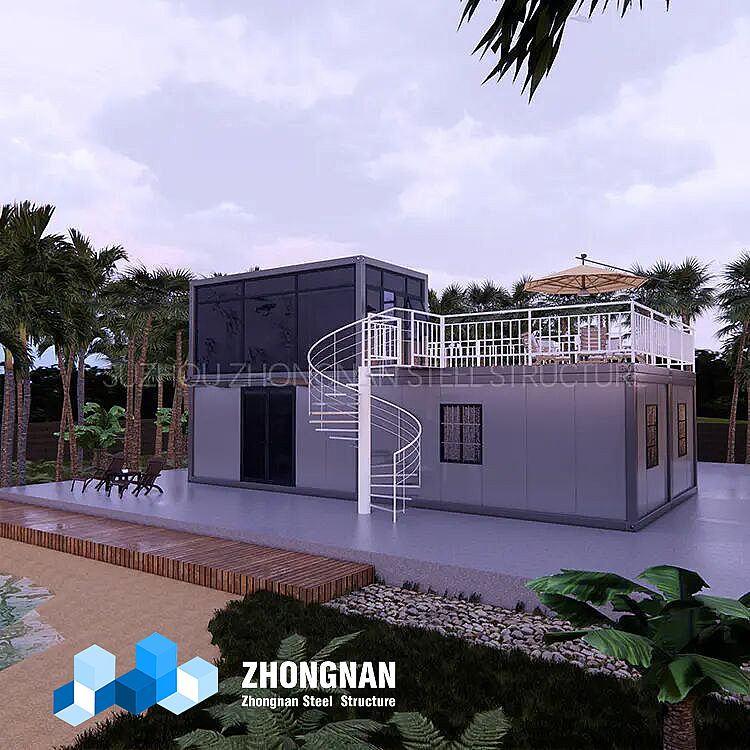

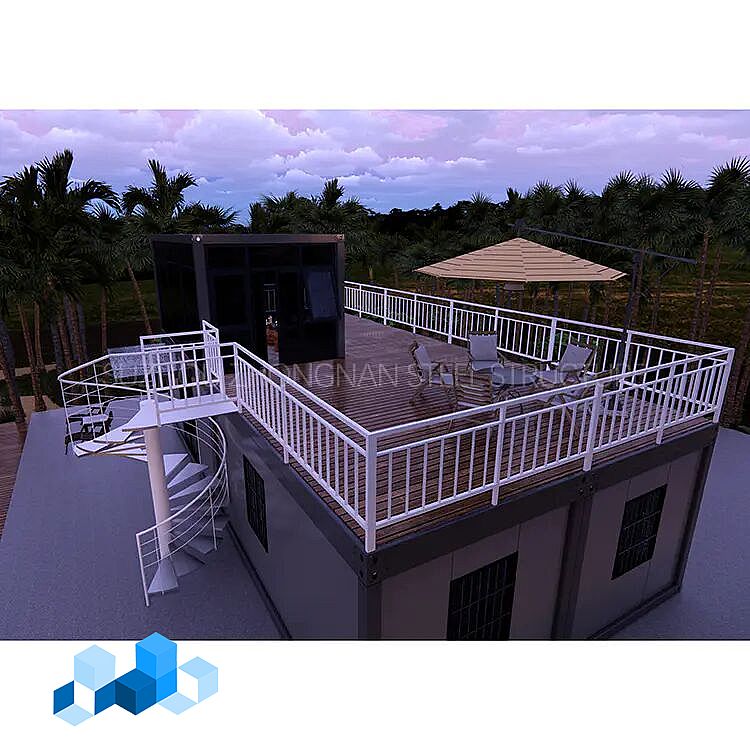

A cleverly designed spiral staircase connects the first and second floors, with the second floor consisting of a panoramic glass curtain wall container room and a terrace. The terrace is laid with solid wood flooring and equipped with railings, serving as an open leisure area. This double-layer customized modular container house cleverly integrates industrial products into nature, allowing users to fully enjoy the natural scenery here.

Assemble container house
Bottom	Frame structure	2.5mm thick profiled steel
	Floor	MGO board,waterproof, fireproof (Option Fiber cement)
	Floor finishes	1.8mm PVC flooring (extra cost)
Roof	Frame structure	2.3mm thick profiled steel
	Outside cover	0.426mm steel sheet
	Insulation	glass wool
	Ceiling	0.25mm steel sheet bottom tile
Corner post	4.5 cold rolled steel profile, galvanization, welded (160mm*160mm)
Wall panel	Sandwich panel with 50mm rock wool
Window	Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass)
Door	Steel door with dimension 925mm*2035mm
Electricity	Light, Switch, Socket, distribution box, breaker and wire
Painting	Automatic galvanizing and baking paint spray molding
Exterior size	5950(L)*3000(W)*2800(H)
