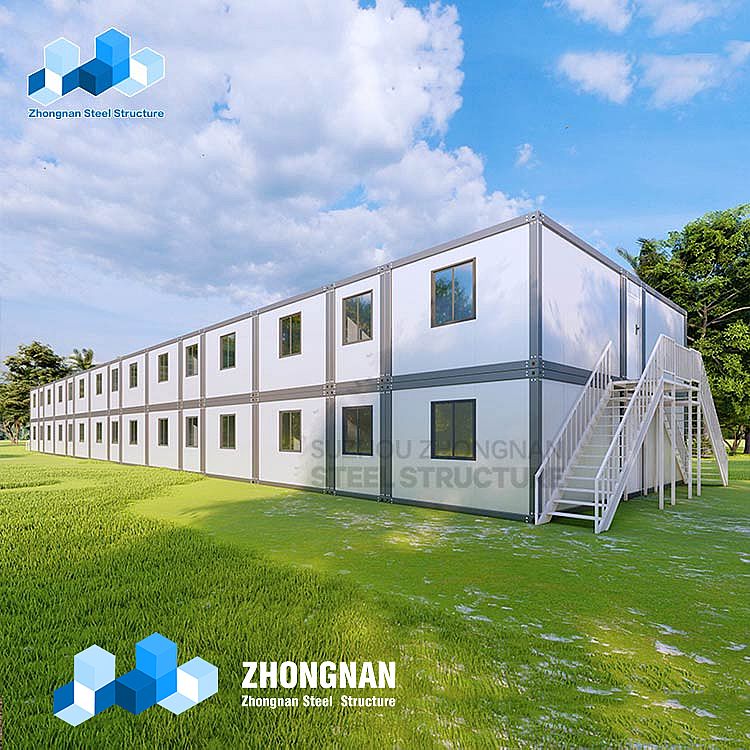

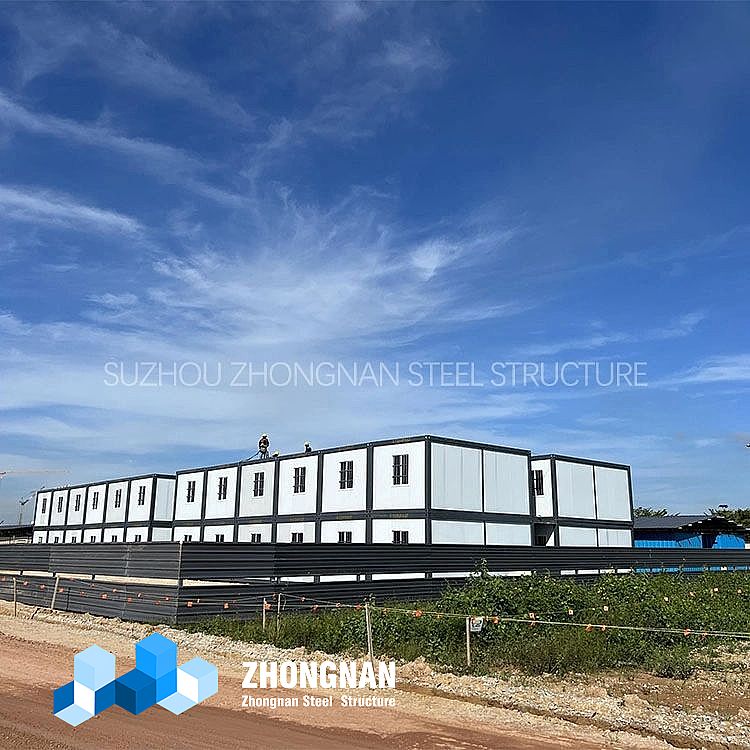

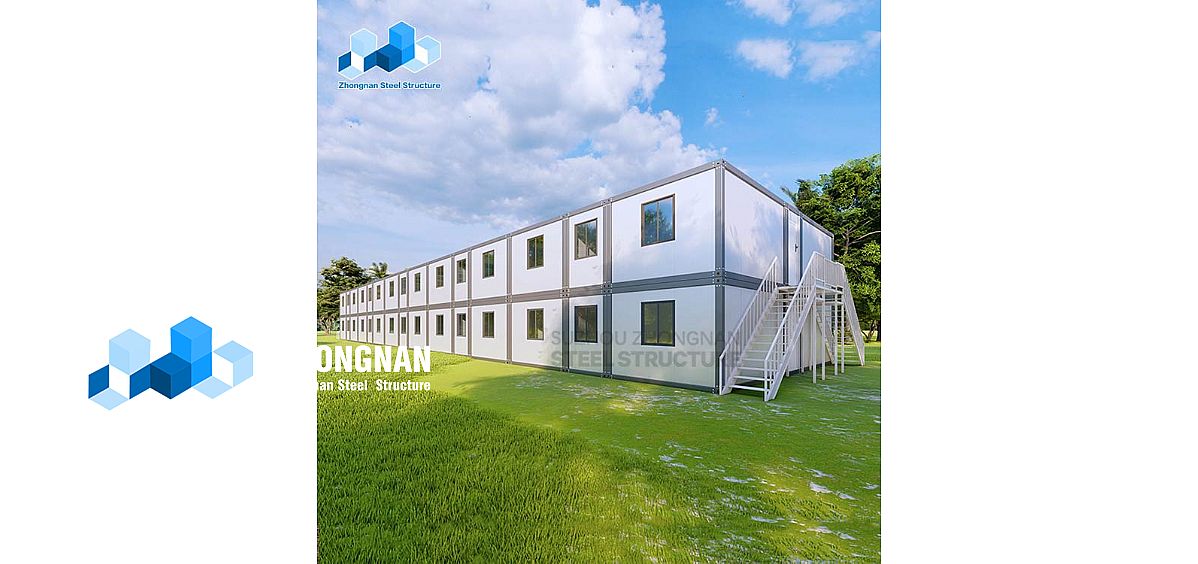

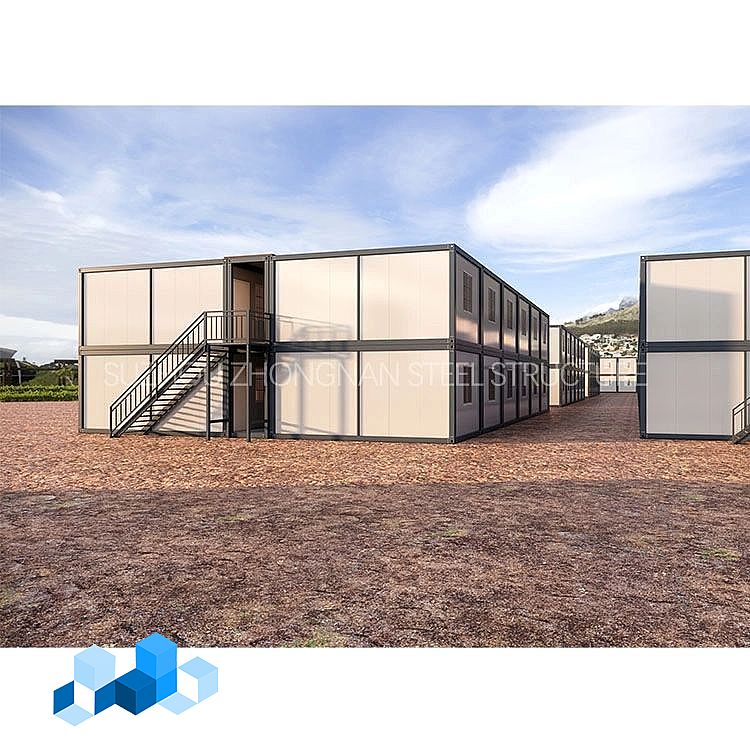

We have made renderings according to customers' needs and built prefab houses according to the renderings. There are four buildings with a combined area of 1,000 square meters. It can be used for production, accommodation, offices, and meetings.
REF: PFC003
Delivery Details
| Bottom | Frame structure | 2.5mm thick profiled steel |
| Floor | MGO board, waterproof, fireproof (Option Fiber cement) | |
| Floor finishes | 1.8mm PVC flooring (extra cost) | |
| Roof | Frame structure | 2.3mm thick profiled steel |
| Outside cover | 0.426mm steel sheet | |
| Insulation | glass wool | |
| Ceiling | 0.25mm steel sheet bottom tile | |
| Corner post | 4.5 cold rolled steel profile, galvanization, welded (160mm*160mm) | |
| Wall panel | Sandwich panel with 50mm rock wool | |
| Window | Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass) | |
| Door | Steel door with dimension 925mm*2035mm | |
| Electricity | Light, Switch, Socket, distribution box, breaker, and wire | |
| Painting | Automatic galvanizing and baking paint spray molding | |
| Exterior size | 5950(L)*3000(W)*2800(H) | |
It can be used to build temporary office space, staff dormitories, schools, warehouses, hospitals, stores, etc.
