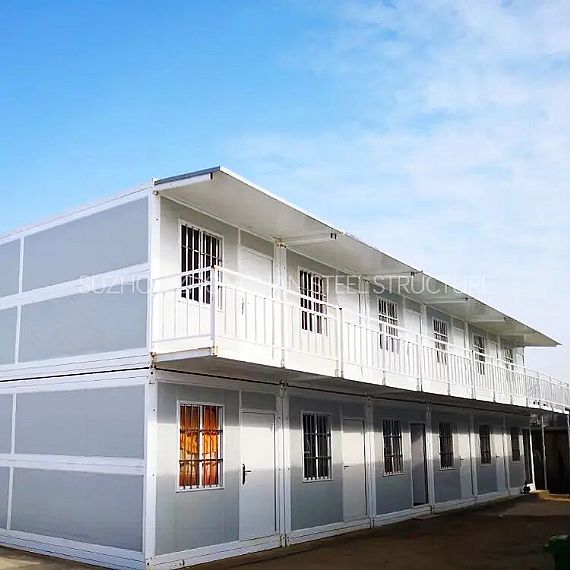

This is a two-story temporary housing composed of twelve standard folding container houses. It can also be expanded according to the needs and can be assembled into a three-story building at most. This kind of housing is generally used in construction sites, shelters, temporary headquarters, and other scenes that need to be built quickly. The folding container house produced by our company can be installed freely, with built-in circuits and decoration. After the installation is completed, the furniture can be put into use, and the short installation time can save a lot of time and labor costs. This is also the main reason why folding container houses are slowly replacing traditional prefabricated houses.
REF: 1582
Delivery Details
Folding container house is simple and easy to install.Regular exported folding container house size is 2450(W)X5800(L)X2500(H)mm.
It is prefered to galvanized steel,manufactured by advanced equipment, abandon the defects caused by traditional technology.
Use 50mm rock wool sandwich panel for wall panel and glass wool for roof panels to make sure good insulation and sound protection.
Modern appearance, optional colors for the walls panel and roof.
 |
 |
 |
 |
|||
| 1B | 2C | 3C | 4A |
| Folding container house | ||
| Material | specification | Raw material |
| Roof steel panel | 0.32×1000mm | Color steel sheet |
| Wall panel | 0.32×50×950mm | Rock wool sandwich panel |
| Bottom beams | 2.3×60×6000mm | Steel beams |
| Square tube | 40×80×1.8mm | Floor square tube |
| Floor | 15×1180×2660mm | MGO board |
| Waterproof folded parts | 1.5×65×80mm | Steel |
| Side wall folded parts | 1.5×65×80mm | PVC |
| Roof beams | 2.7×130×50mm | Steel |
| Waterproof sealing | 40×30mm | Slot seal |
| Door | 50×790×2000 | Steel door |
| Window | 50×925×1200 | Aluminum alloy sliding window |
| Hinge | 14×3 | Steel hinge |
