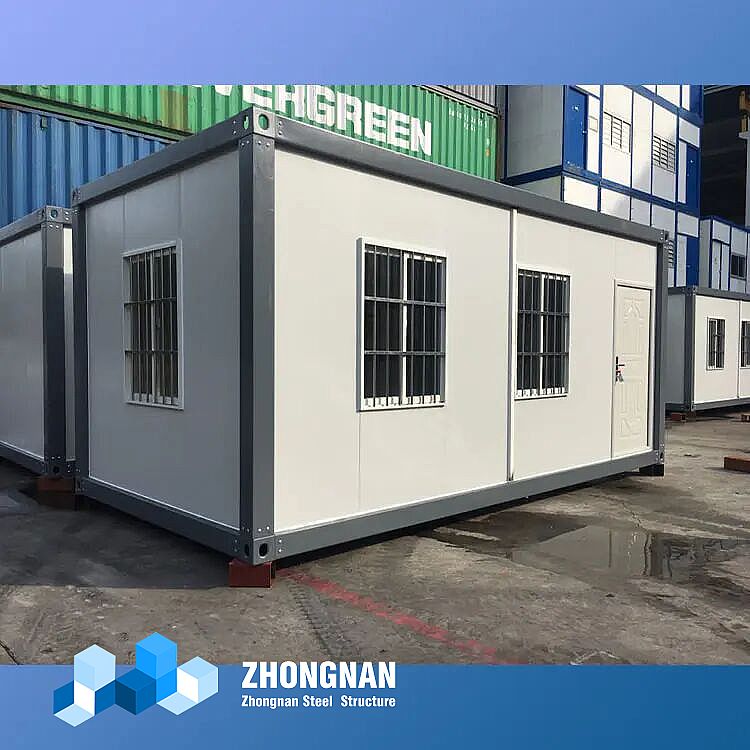

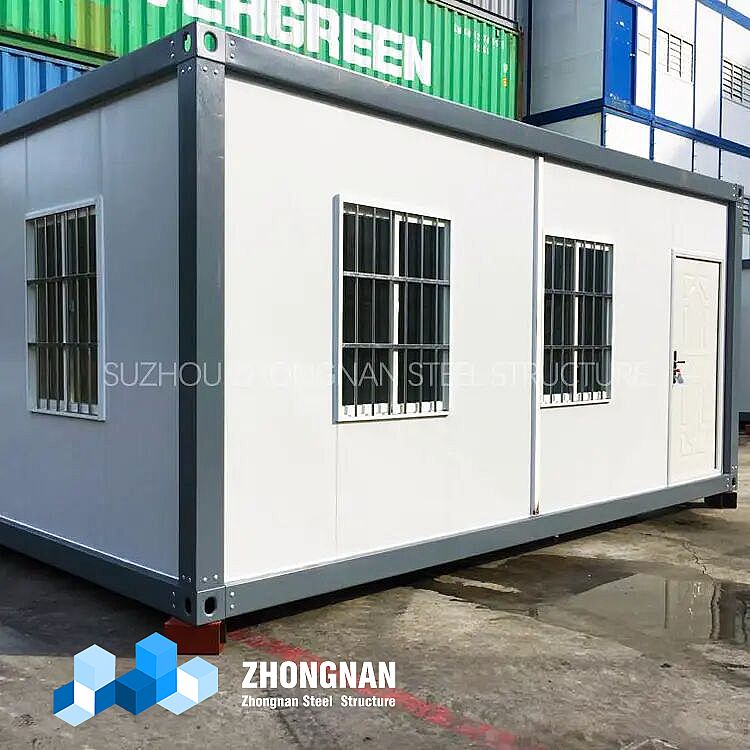

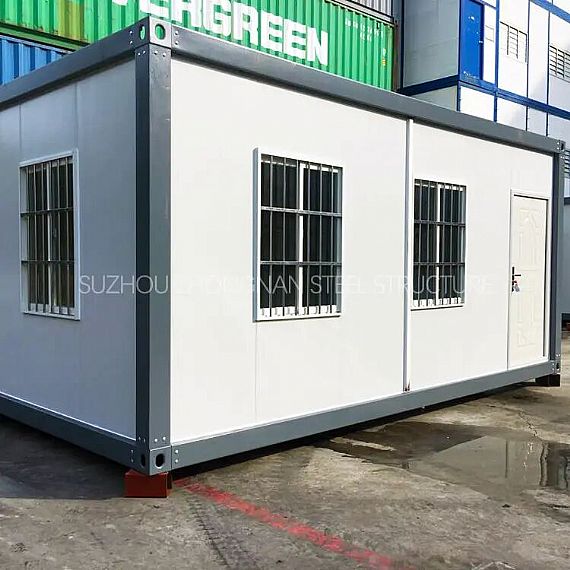

Portable detachable container house is a new generation of prefab house. It is a whole unit itself, which can be used as a single portable house, or combined laterally or placed with layers. Generally we make 20ft sizes, combination is also available,size can be adjusted base on the standard.Water-proof system on the roof makes good sealing effect. The main frame structure has 4 pcs columns, 8 pcs beams and 8 pcs corner post . All frame profiles are made of galvanized steel rolled , the frame thickness varies from 2mm to 3mm. It has good resistance to bending and compression.
 |
 |
 |
 |
|||
| 1C | 2E | 3B | 4B |
| Assemble container house | ||
| Bottom | Frame structure | 2.5mm thick profiled steel |
| Floor | MGO board,waterproof, fireproof (Option Fiber cement) | |
| Floor finshes | 1.8mm PVC flooring (extra cost) | |
| Roof | Frame structure | 2.3mm thick profiled steel |
| Outside cover | 0.426mm steel sheet | |
| Insulation | glass wool | |
| Ceiling | 0.25mm steel sheet bottom tile | |
| Coener post | 4.5 cold rolled steel profile, galvanization, welded (160mm*160mm) | |
| Wall panel | Sandwich panel with 50mm rock wool | |
| Window | Aluminum alloy windows with dimension 925mm*1200mm (3mm single glass) | |
| Door | Steel door with dimension 925mm*2035mm | |
| Electricity | Light, Switch, Socket, distribution box, breaker and wire | |
| Painting | Automatic galvanizing and baking paint spray molding | |
| Exterior size | 5950 (L)*3000 (W)*2800 (H) | |
