Labor Camp Container House


Labor Camp Container House

Project Description

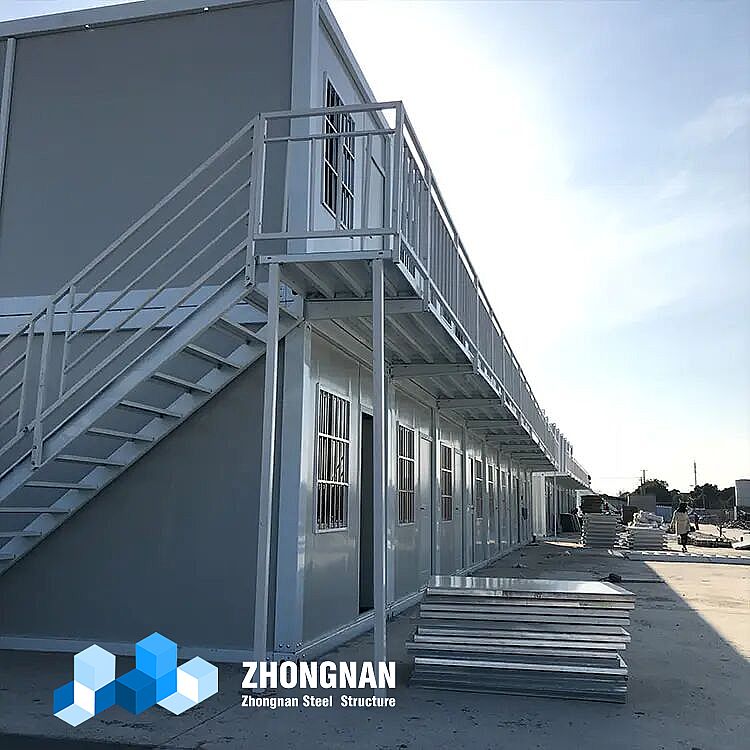

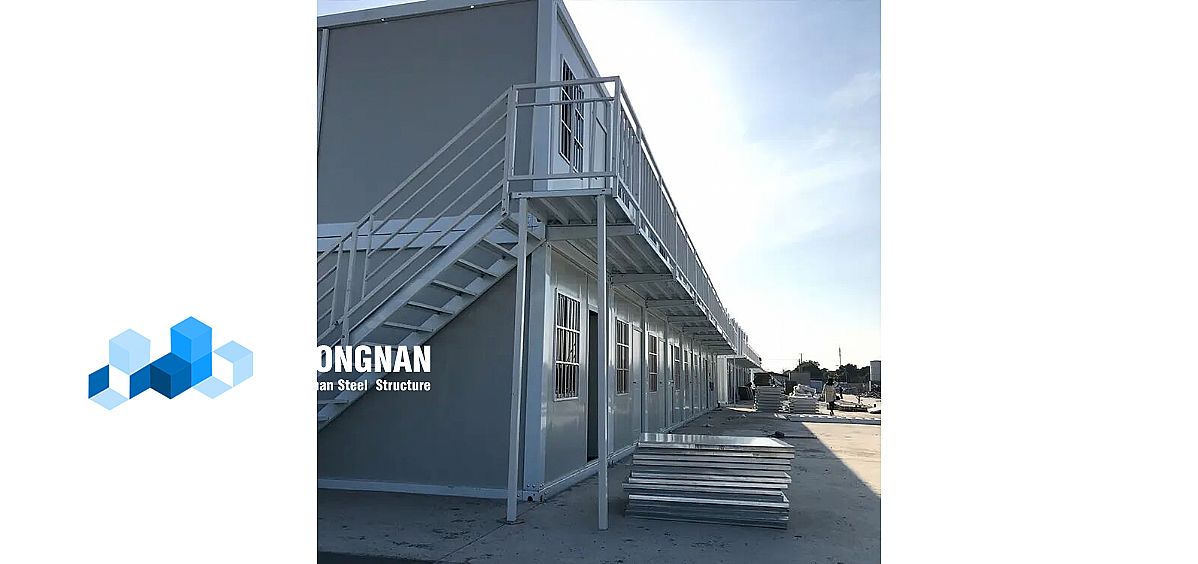

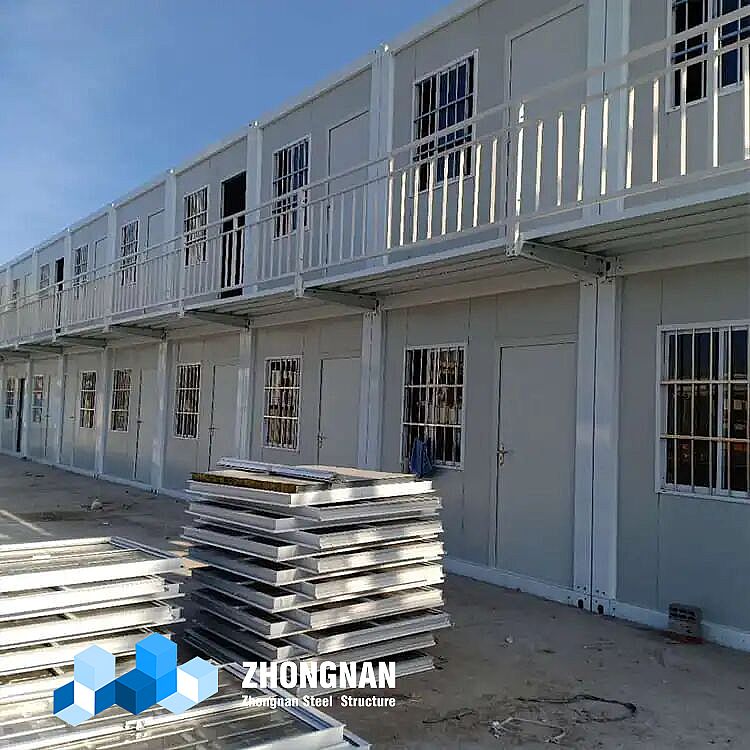

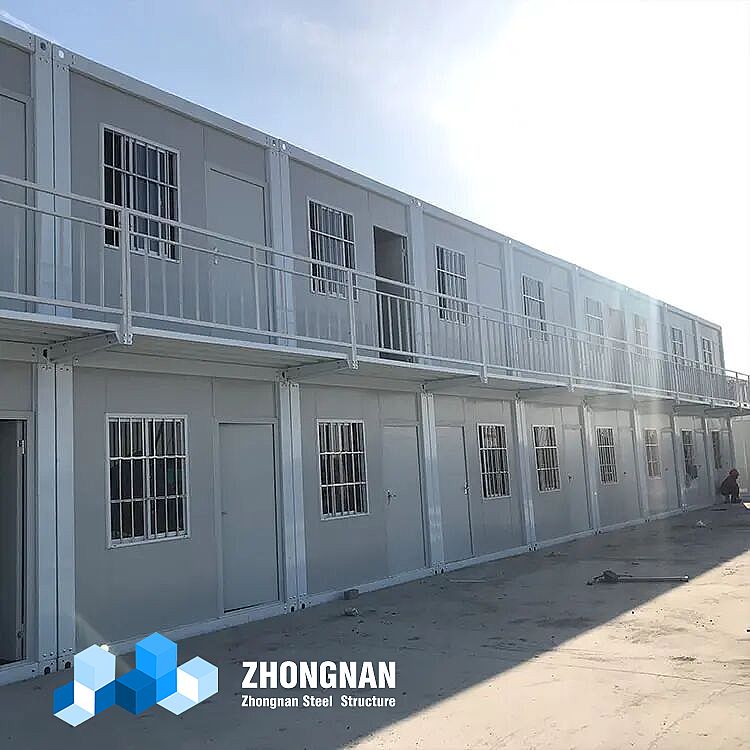

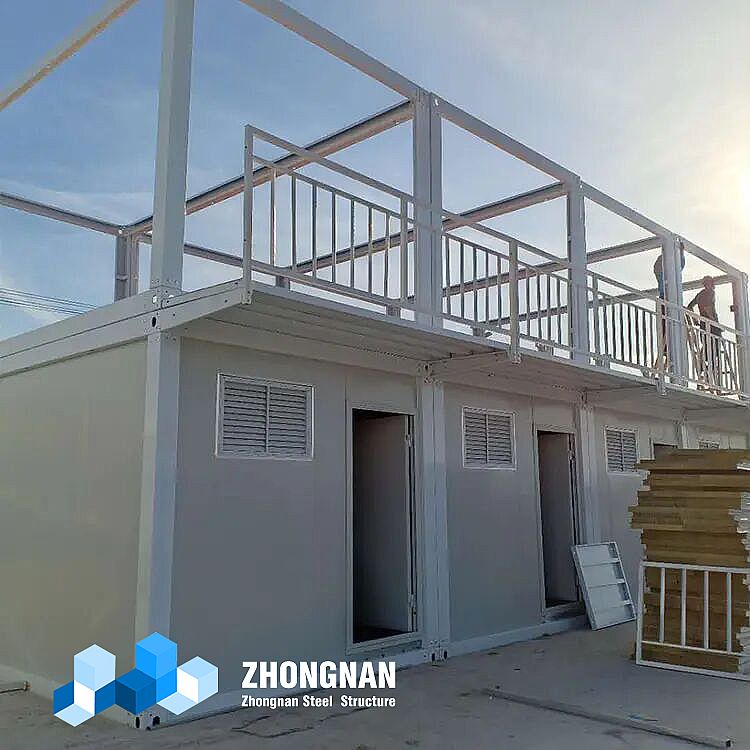

This project is famous Chinese architectural projects which has built in Shanghai. They stacked the boxes together to use as workers' dormitory.Portable detachable container house is a new generation of prefab house. It is a whole unit itself, which can be used as a single portable house, or combined laterally or placed with layers. Generally we make 20ft sizes, combination is also available,size can be adjusted base on the standard. Wall panel thickness: 50mm/75mm/100mm,according to specific climate conditions. Electricity and water plumbing system can provided. Assemble Container house can be connected by bolts, with easy installation and fast transportation. Life span is 10-15 years. Water-proof system on the roof makes good sealing effect. The main frame structure has 4 pcs columns, 8 pcs beams and 8 pcs corner post . All frame profiles are made of galvanized steel rolled , the frame thickness varies from 2mm to 3mm. It has good resistance to bending and compression.




1C 2E 3B 4B





Assemble container house
BottomFrame structure2.5mm thick profiled steel
FloorMGO board,waterproof, fireproof (Option Fiber cement)
Floor finishes1.8mm PVC flooring (extra cost)
RoofFrame structure2.3mm thick profiled steel
Outside cover0.426mm steel sheet
Insulation glass wool
Ceiling0.25mm steel sheet bottom tile
Corner post4.5 cold rolled steel profile, galvanization, welded (160mm*160mm)
Wall panelSandwich panel with 50mm rock wool
WindowAluminum alloy windows with dimension 925mm*1200mm (3mm single glass)
DoorSteel door with dimension 925mm*2035mm
ElectricityLight, Switch, Socket, distribution box, breaker and wire
PaintingAutomatic galvanizing and baking paint spray molding
Exterior size5950(L)*3000(W)*2800(H)
